AM TANK 2300 DIESEL
$5,999.00
Shipping not included

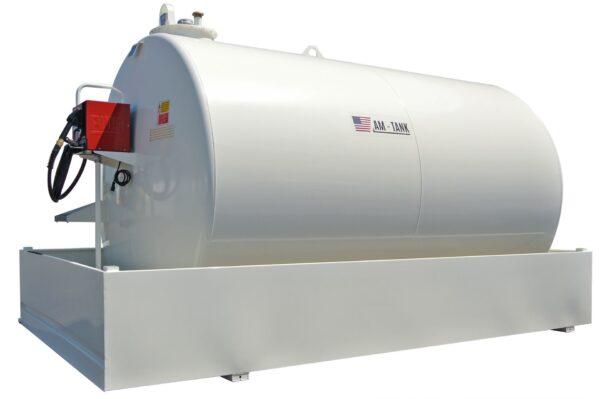

Skid-mounted horizontal cylindrical Diesel tanks manufactured in carbon steel quality S235JR, watertight electro-welded (submerged arc welding process), provided with anti-roll supports, primed with a rust preventing layer and finished with a layer of white paint. Tanks are delivered pressure-tested and ready-to-use (plug-and-play).
Description
Shipping not included
Skid-mounted horizontal cylindrical Diesel tanks manufactured in carbon steel quality S235JR, watertight electro-welded (submerged arc welding process), provided with anti-roll supports, primed with a rust preventing layer and finished with a layer of white paint. Tanks are delivered pressure-tested and ready-to-use (plug-and-play).
Tanks are equipped with:
- Ø 16” (400 mm) manhole complete with oil gasket and tight bolted cover.
- 3” lockable filling quick cap.
- Mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’ geometric capacity.
- Vent device with flame arrestor mesh.
- Mechanical float operated tank contents gauge with planetary gear, adjustable scale in cm.
- Tank drainage point provided with a safety cap for routine maintenance and cleaning.
- Suction point equipped with check valve, strainer and ball valve.
- Equipotential grounding point.
- Containment dike complete with lifting plates, grounding connection point, drain plug for routine maintenance / cleaning and n° 4 housings suitable for fixing the uprights of the roof system.

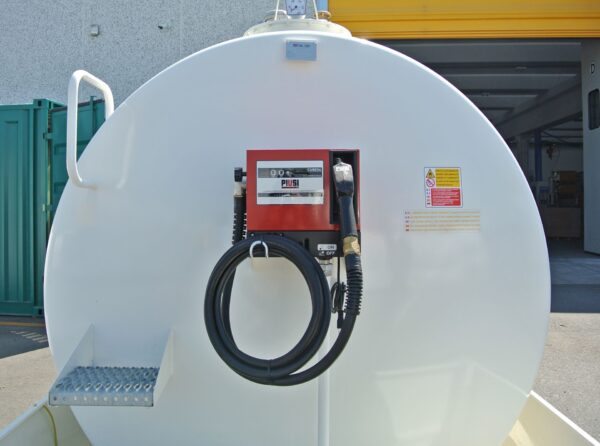

Fuel Transfer Unit:
- 15 GPM Diesel Transfer Pump (120V/60Hz, 650 Watt, 7.5 Amp,
- Duty Cycle: 20 minutes on/off, 3450 RPM, 48.5 lbs, IP55 rated).
- 3-Digit Mechanical Meter (in gal).
- 13 ft. of dispensing hose.
- A60 Auto-nozzle.
Features AM-TANK2300:
• Nominal capacity: 2378 gal [8995 lt]
• Tank total length (including containment dike): 12,82 ft [3,91 m]
• Tank total width (including containment dike): 6,89 ft [2,10 m]
• Tank total height (including fuel transfer unit): 7,20 ft [2,20 m]
• Tank total weight**: 2094 lbs [950 kg]
**(including fuel unit and accessories)
Features AM-TANK2300S:
• Nominal capacity: 2378 gal [8995 lt]
• Tank total length (including containment dike): 11,48 ft [3,50 m]
• Tank total width (including containment dike): 7,22 ft [2,20 m]
• Tank total height (including fuel transfer unit): 7,55 ft [2,30 m]
• Tank total weight**: 2094 lbs [950 kg]
**(including fuel unit and accessories)
Features AM-TANK2300N:
• Nominal capacity: 2378 gal [8995 lt]
• Tank total length (including containment dike): 10,50 ft [3,20 m]
• Tank total width (including containment dike): 7,38 ft [2,25 m]
• Tank total height (including fuel transfer unit): 7,95 ft [2,42 m]
• Tank total weight**: 2094 lbs [950 kg]
**(including fuel unit and accessories)
