AM TANK 236 DIESEL + 26 DEF

Colors available:

• Green Tank with dark Grey lid (new style)
• Black tank with Grey lid

Tanks are equipped with:

• 2” filling plug equipped with three-effects (pressure/de-pressure/overturning) air vent device for both Diesel and DEF section.
• Integrated forklift pockets (to lift when full).
• Lifting lugs to lift from above, even when full
• Integrated handles (to lift when empty).
• Integrated recesses for securing with ratchet lashing straps during transport.
• Integrated covering lid to provide protection against bad weather conditions, UV rays and equipped with lockable draw latches.
• Suction net filter to stop and separate impurities (Diesel section only).
• Fuel level indicators
• DEF tank can be removed. The remaining space can be used as tool tray when DEF tank is not being utilized.

Fuel Transfer Unit DIESEL section:

• 18 GPM Diesel DC Transfer Pump (12V, 500 Watt, 42 Amp, Duty Cycle: 30 minutes on/off, 2000 RPM, ON/OFF switch, IP55 rated).
• 20 ft. Cable with clamps.
• 13 ft. of flexible dispensing hose with A60 Auto-nozzle.
• Water and particulate separator filter. Filtering capacity 30 µm.

Fuel Transfer Unit DEF section:

• 4 GPM Submersible DEF 12V DC Transfer Pump. It is powered by the same 12 volt source as the Diesel section with a separate power plug.  No additional power cables are required.
• 13 ft. of flexible dispensing hose.

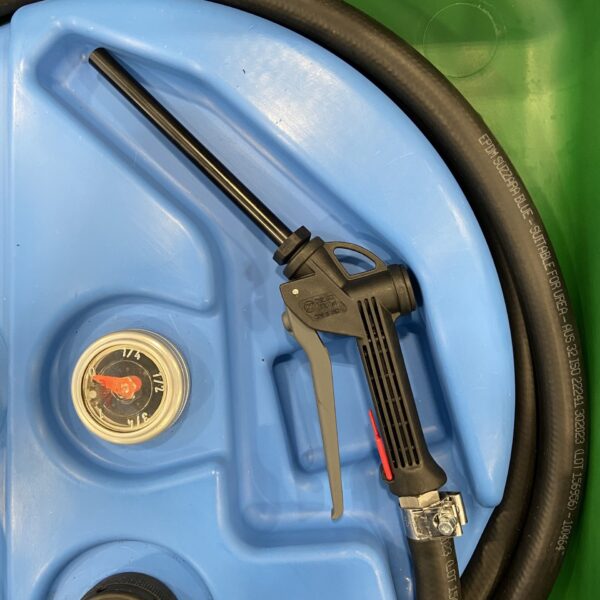

• Manual nozzle.

Features:

• Nominal capacity: 236 + 26 gal   [900 + 100 lt]
• Tank total length: 60,2 in   [153 cm]
• Tank total width: 35,8 in   [91 cm]
• Tank total height: 45,3 in  [115 cm]
• Tank total weight**: 247 lbs   [112 kg]

**(including fuel unit and accessories)
