OPTIONAL EQUIPMENT FOR AM-TANK

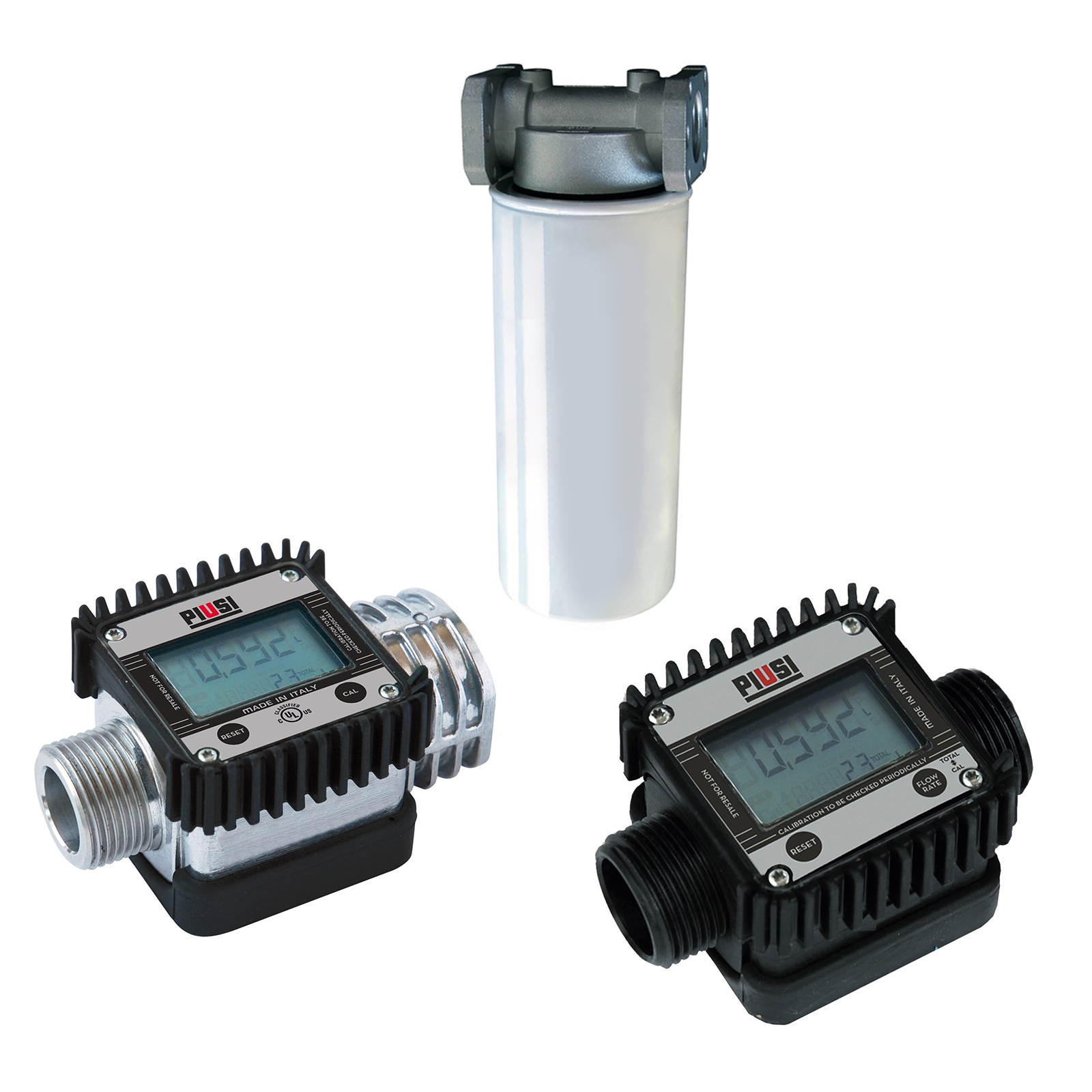

AM-TANK offers many accessory options for maximum effectiveness. These include cartridge filters for water absorbing and impurities and particulate separation These Fuel filters guarantee the fundamental protection of motors. The filters characteristically separate and absorb any water/partciulate present in the pumped fuel. It also includes turbine digital flow meters specifically designed for fuels. Easy to install in-line or at the end of a delivery pipe, they are equipped with a rotatable display. These meters are available both with technopolymer or aluminum body.
Description

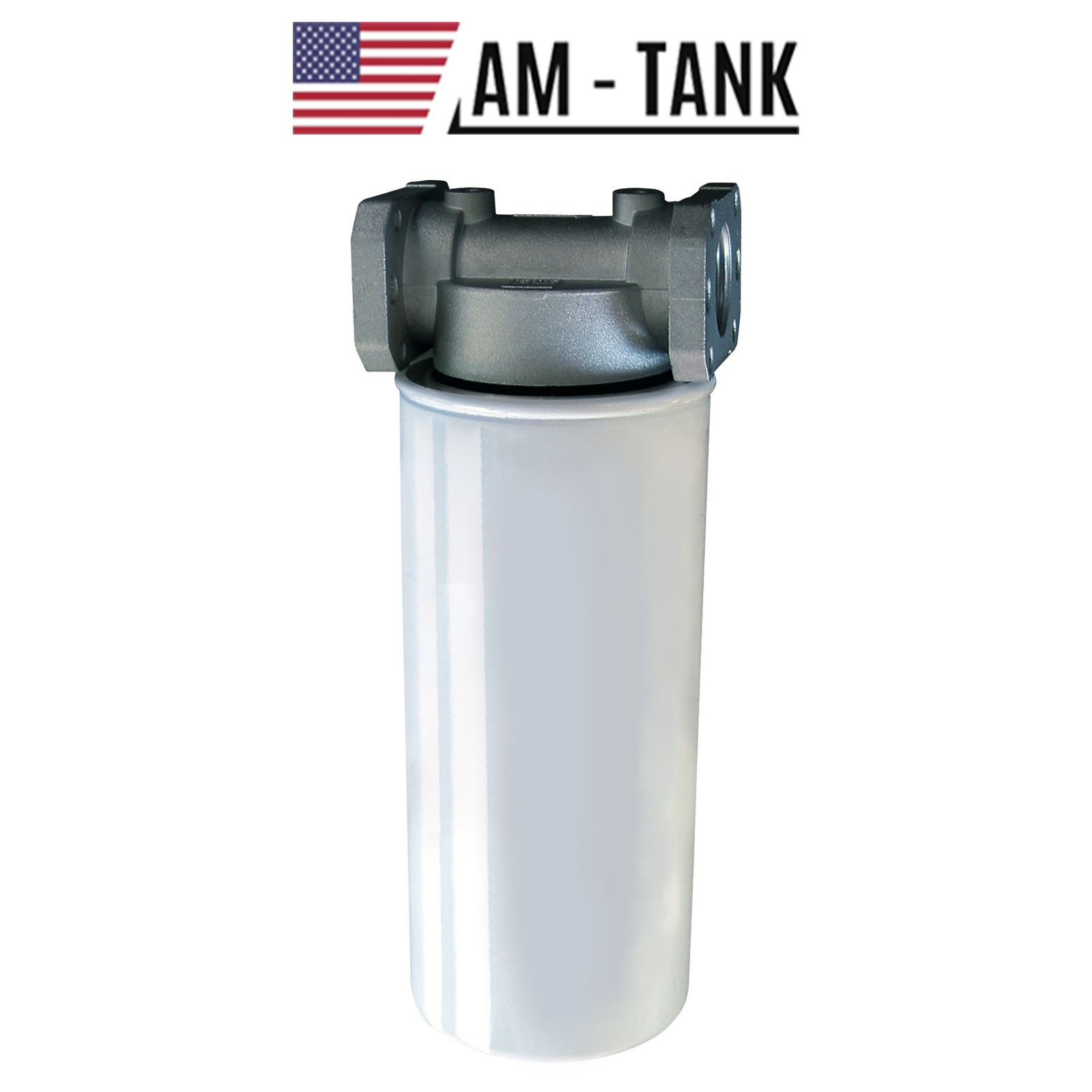

AM-FILTER FOR DIESEL
Filtering kit includes:
– N.1 Filter head
– N.1 Filter cartridge
– Connections, O-rings, fittings for installation on AM-TANKs
Performances:
– Flow-rate: up to 25 GPM
– Pressure: 50 psi max operating
– Filtering capacity: 200Β/30μ
AM-FILTER FOR GASOLINE
Filtering kit includes:
– N.1 Filter head
– N.2 Filter cartridges
– Connections, O-rings, fittings for installation on AM-TANKs
Performances:
– Flow-rate: up to 25 GPM
– Pressure: 50 psi max operating
– Filtering capacity: 200Β/30μ
AM-METER FOR DIESEL
Metering kit includes:
– N.1 turbine digital flow meter with display with 1” connection INLET/OUTLET
– N.2 x AAA battery 1.5V
– User manual (it can be re-calibrated)
Performances:
– electronic board with LCD shows a partial of 5 digits from 0.1 to 99999, for a total of 6 digits 1 to 999999 Total.
– flow meter guarantees a metering accuracy of +/- 1%
– it can be calibrated in US gal / Litres / Imp. Gal
– it guarantees a metering accuracy of +/- 1% and a repeatability of 0.2%
– reinforced aluminum body with polypropylene turbine
– resettable total available
– flow rate 2-32 gpm and flow-rate indication
– Loss of pressure: <0.4 PSI @ 30 GPM - Flow-rate 2-32 gpm / 300 PSI Max operating AM-METER FOR GASOLINE Metering kit includes: - N.1 UL-approved and Explosion-proof turbine digital flow meter with display with 1” connection INLET/OUTLET - N.2 x AAA battery 1.5V - User manual (it can be re-calibrated) Performances: - electronic board with LCD shows a partial of 5 digits from 0.1 to 99999, for a total of 6 digits 1 to 999999 Total. - flow meter guarantees a metering accuracy of +/- 1% - it can be calibrated in US gal / Litres / Imp. Gal - it guarantees a metering accuracy of +/- 1% and a repeatability of 0.2% - reinforced aluminum body with polypropylene turbine - resettable total available - flow rate 2-32 gpm and flow-rate indication - loss of pressure: <0.4 PSI @ 30 GPM
Description
AM-FILTER FOR DIESEL
Filtering kit includes:
– N.1 Filter head
– N.1 Filter cartridge
– Connections, O-rings, fittings for installation on AM-TANKs
Performances:
– Flow-rate: up to 25 GPM
– Pressure: 50 psi max operating
– Filtering capacity: 200Β/30μ
AM-FILTER FOR GASOLINE
Filtering kit includes:
– N.1 Filter head
– N.2 Filter cartridges
– Connections, O-rings, fittings for installation on AM-TANKs
Performances:
– Flow-rate: up to 25 GPM
– Pressure: 50 psi max operating
– Filtering capacity: 200Β/30μ
AM-METER FOR DIESEL
Metering kit includes:
– N.1 turbine digital flow meter with display with 1” connection INLET/OUTLET
– N.2 x AAA battery 1.5V
– User manual (it can be re-calibrated)
Performances:
– electronic board with LCD shows a partial of 5 digits from 0.1 to 99999, for a total of 6 digits 1 to 999999 Total.
– flow meter guarantees a metering accuracy of +/- 1%
– it can be calibrated in US gal / Litres / Imp. Gal
– it guarantees a metering accuracy of +/- 1% and a repeatability of 0.2%
– reinforced aluminum body with polypropylene turbine
– resettable total available
– flow rate 2-32 gpm and flow-rate indication
– Loss of pressure: <0.4 PSI @ 30 GPM - Flow-rate 2-32 gpm / 300 PSI Max operating AM-METER FOR GASOLINE Metering kit includes: - N.1 UL-approved and Explosion-proof turbine digital flow meter with display with 1” connection INLET/OUTLET - N.2 x AAA battery 1.5V - User manual (it can be re-calibrated) Performances: - electronic board with LCD shows a partial of 5 digits from 0.1 to 99999, for a total of 6 digits 1 to 999999 Total. - flow meter guarantees a metering accuracy of +/- 1% - it can be calibrated in US gal / Litres / Imp. Gal - it guarantees a metering accuracy of +/- 1% and a repeatability of 0.2% - reinforced aluminum body with polypropylene turbine - resettable total available - flow rate 2-32 gpm and flow-rate indication - loss of pressure: <0.4 PSI @ 30 GPM
