AM TANK 1000 DIESEL
Premium Skid-Mounted Diesel Storage Systems
The Ultimate “Plug-and-Play” Diesel Fueling Station. Secure. Reliable. Industrial Strength.
Description

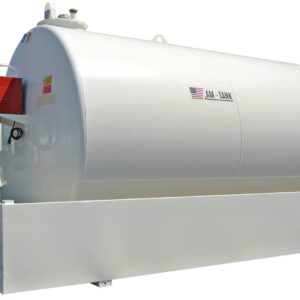

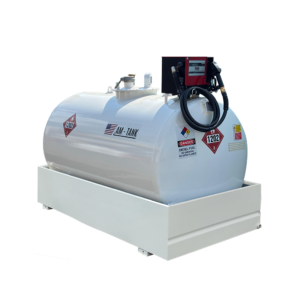

Our skid-mounted horizontal cylindrical tanks are engineered for the professional who requires a permanent yet moveable fuel hub. Manufactured from high-quality carbon steel and utilizing a submerged arc welding process, these tanks are built to withstand the rigors of industrial, agricultural, and construction environments.
Upgrade your on-site fuel storage with our Above-ground Storage Skid Tanks. Designed for high-performance diesel management, these tanks arrive fully assembled and ready for immediate use. Just place it, power it, and start fueling.
Fuel Transfer Unit:
Pump: 15 GPM Diesel Transfer Pump (120V/60Hz, 3450 RPM, IP55 Rated).
Metering: 3-Digit Mechanical Meter (Units: Gallons).
Hardware: 13 ft. dispensing hose with A60 Auto-shutoff nozzle.
1” Steel Suction Line: Features a foot valve and a specialized quick-connect adapter for the fuel transfer unit.
Key Tank Features:
2” Aluminum Fill Cap: Heavy-duty hinged design, fully lockable for maximum security.
2” Vent Device: Integrated vent equipped with a flame arrestor mesh for safety.
Mechanical Float Gauge: Precision-engineered for accurate fuel level monitoring.
Heavy-Duty Lifting Eye Bolt: Strategically placed for balanced and safe hoisting for an easy maneuverability
1” Tank Drainage Port: Located at the bottom for easy routine maintenance and cleaning.
Secondary Containment Dike (optional): Includes a dedicated drain plug and integrated grounding cable (equipotential bonding).
